Guided instructions on how to install the various VisualTarget mounts as well as the install of the tablets in the enclosures.
***NOTE: VisualTarget Enclosures do not support off-the-shelf RJ-45 connectors that have a rubber strain relief after the connector. The cable must be terminated with a standard RJ-45 plug.

These instructions cover the mechanical assembly of the mounts for the Universal Dock.

Applies To:

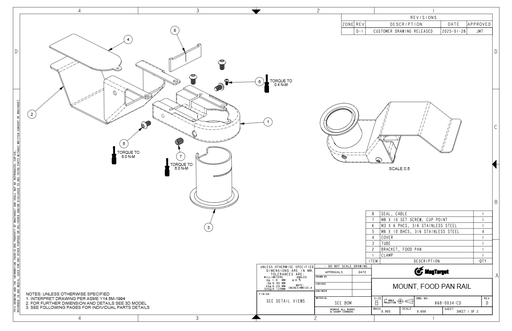

• [668-0034] Mount, Food Pan Rail

• [668-0035] Mount, Countertop

• [668-0036-001] Mount, Pole, With 3 Inch Cross-Tube Extension

These instructions cover the installation of tablets in their respective cases.

Applies To:

• [228-0005-001] Case, Magnetic Charging, iPad Air 13” (M2, M3) & 12.9” Pro 3-6th gen

• [228-0007-001] Case, Magnetic Charging, iPad Mini 8.3" (6th & 7th Gen)

• [228-0008-001] Case, Magnetic Charging, iPad 11" (A16), 10.9" (10th Gen)
