These instructions cover the mechanical assembly of the Universal Dock to its mount.

Applies To:

·         [364-0019] Dock, Magnetic, Universal, PoE

·         [364-0027] Dock, Magnetic, Universal, USB-C

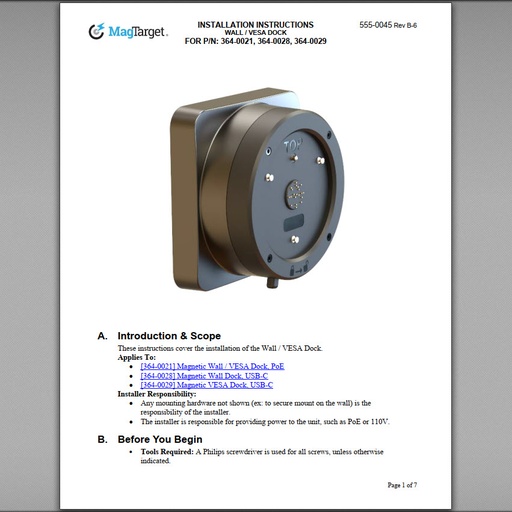

These instructions cover the installation of the Wall / VESA Dock.

Applies To:

·         [364-0021] Magnetic Wall / VESA Dock, PoE

·         [364-0028] Magnetic Wall Dock, USB-C

·         [364-0029] Magnetic VESA Dock, USB-C

Change the color of the light easily by simply entering the corresponding frequency into the application used to control the tablets (Envoy, Zoom, EMS Software, EventBoard, etc.)

These frequencies can be tested by opening the link below directly from the tablet in the VisualTarget enclosure:
magtarget.com/color

Updated in February 2019 to integrate dimmer LED brightness,
new LED off frequency, rainbow frequency for trade shows.
Legacy frequency is still supported.
If you received a new enclosure prior to February 2018 contact our technical support team to obtain your corresponding Frequency Key

This document shows where the light frequency setting is located in the Zoom dashboard.

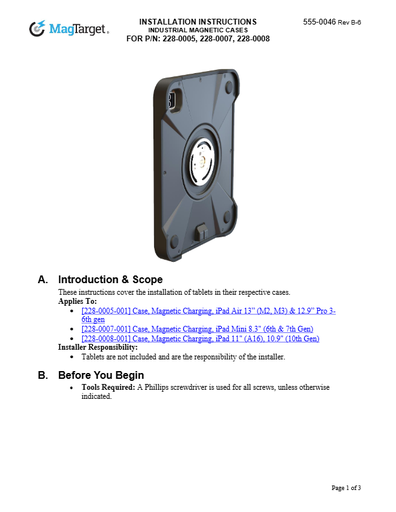

These instructions cover the installation of tablets in their respective cases.

Applies To:

• [228-0005-001] Case, Magnetic Charging, iPad Air 13” (M2, M3) & 12.9” Pro 3-6th gen

• [228-0007-001] Case, Magnetic Charging, iPad Mini 8.3" (6th & 7th Gen)

• [228-0008-001] Case, Magnetic Charging, iPad 11" (A16), 10.9" (10th Gen)

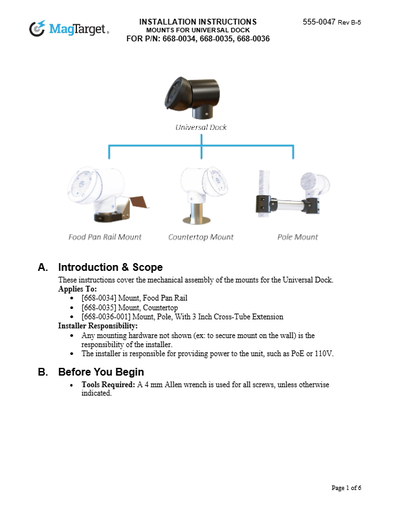

These instructions cover the mechanical assembly of the mounts for the Universal Dock.

Applies To:

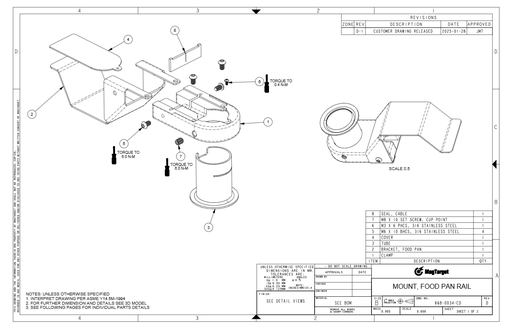

• [668-0034] Mount, Food Pan Rail

• [668-0035] Mount, Countertop

• [668-0036-001] Mount, Pole, With 3 Inch Cross-Tube Extension

Use this test video to check the proper functioning of the lights on your Kronos Enclosure

KRONOS Enclosures do not support off-the-shelf RJ-45 connectors that have a rubber strain relief after the connector. The cable must be terminated with a standard RJ-45 plug.
The instructions show how a cable with molded strain relief can be upgraded to a standard RJ-45 connector.

Although the steps below are specific to Cisco PoE Switches (running IOS) with EventBoard from TEEM installed on the tablets. Similar steps can be taken to setup other switches and mobile App.
